Virtual Vision



CopyBox 7 Compact Flash Duplicator - compact flash duplicator system stand alone cf copy tower direct duplication
Introduction - Features - Specifications

A Virtual Vision Product

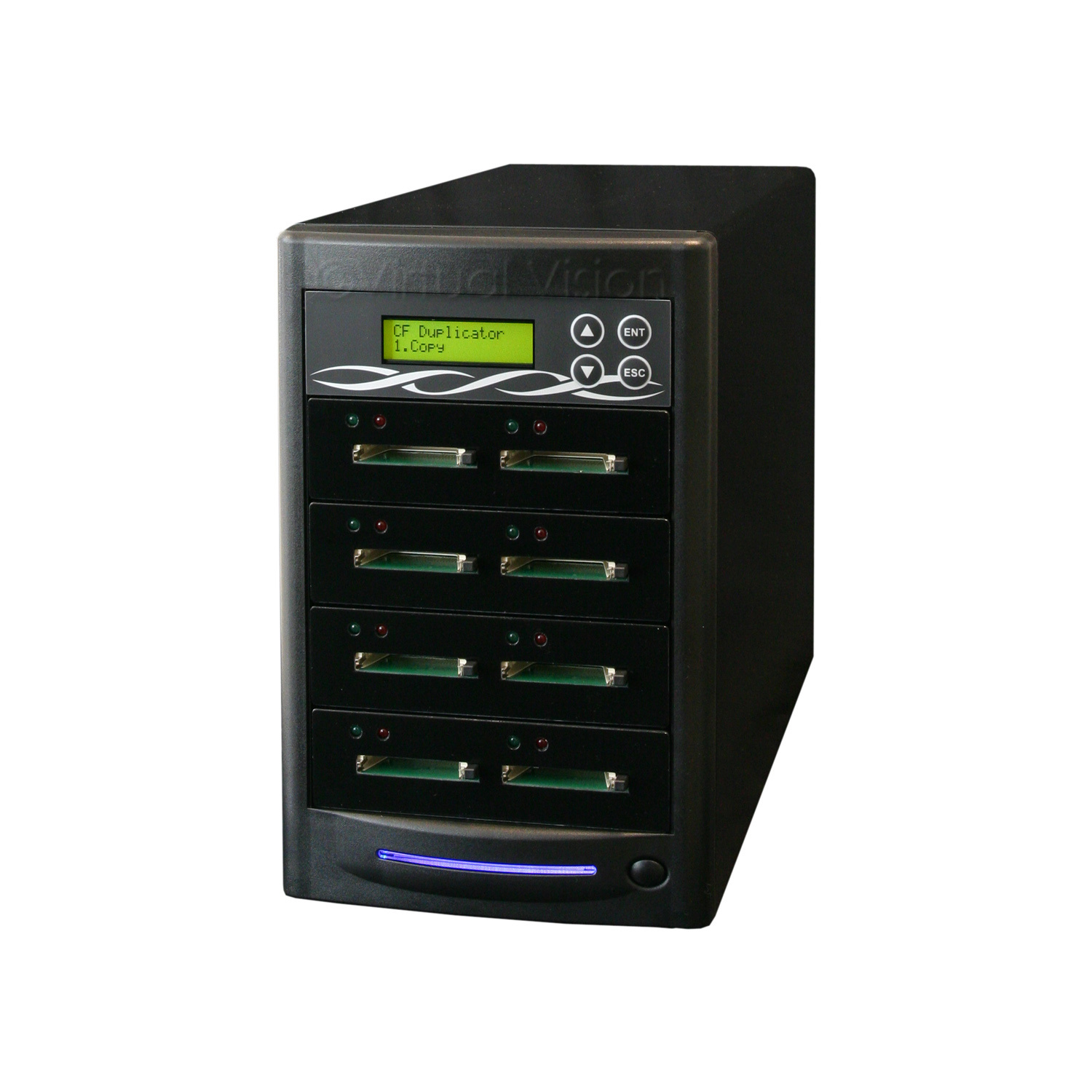

CopyBox 7 CF Duplicator - compact flash duplicator system stand alone cf copy tower direct duplication

Prices:
Price - compact flash duplicator system stand alone cf copy tower direct duplicationCopyBox 7 CF
- Prices in Euro, excl. 21% VAT.
Information:
Delivery Time - compact flash duplicator system stand alone cf copy tower direct duplicationDelivery Time
Warranty - compact flash duplicator system stand alone cf copy tower direct duplicationWarranty 1 year
Payment - compact flash duplicator system stand alone cf copy tower direct duplicationPayment
Shipment - compact flash duplicator system stand alone cf copy tower direct duplicationShipment
Support - compact flash duplicator system stand alone cf copy tower direct duplicationSupport
Price Guarantee - compact flash duplicator system stand alone cf copy tower direct duplicationPrice Guarantee
Downloads:
Product Comparison - compact flash duplicator system stand alone cf copy tower direct duplicationComparison Data Duplicators
User Manual - compact flash duplicator system stand alone cf copy tower direct duplicationUser Manual CopyBox 7 CF
Download PDF BrochureBrochure CopyBox 7 CF
Multimedia:
High resolution photo - compact flash duplicator system stand alone cf copy tower direct duplicationHigh resolution photo
Also see:
Also See - compact flash duplicator system stand alone cf copy tower direct duplicationUSB Stick Duplicators
Also See - compact flash duplicator system stand alone cf copy tower direct duplicationMicroSD Duplicators
Also See - compact flash duplicator system stand alone cf copy tower direct duplicationSD Duplicators

Introduction - compact flash duplicator system stand alone cf copy tower direct duplication
The CopyBox 7 CF duplicator is suitable for users who regularly need to duplicate CompactFlash memory cards. The system operates completely stand-alone, without software or PC connection. The CopyBox 7 CF can simultaneously duplicate 7 CompactFlash cards from one "master" card. Just insert the master CF memory card into the master data port, insert empty CF cards in the target data ports and press the button to start duplicating!

The CopyBox 7 CF offers a maximum duplication speed of 33 MB/s, per individual port. This allows a data throughput of 118 GB per hour, per port. However, most current CF cards offer lower writing speeds which makes the CopyBox production capacity dependant on the specific Compact Flash media used.

Operating the CopyBox 7 CF is quite simple; all functions are selected using the LCD display and control buttons on the front of the unit. This makes the CopyBox suitable for all users. In addition to the regular Copy and Compare functions, the CopyBox CF duplicator also offers a number of special features;

- Capacity Check (checks the real flash memory capacity on a CF memory card)
- Quick Format (formats CF cards FAT16/32)
- Quick/Full Erase (erases data from CF memory cards)
- DoD Erase (erases media 3x according to the Department of Defense standard)
- Measure Speed (measures the real read and write speeds of CF cards)
- Media Check (checks if the entire CF card can be read and written)

Features - compact flash duplicator system stand alone cf copy tower direct duplication
- Stand-alone operation, easy to follow menu.
- Suitable for all users, no computer knowledge required.
- One master data port and 7 target data ports.
- Maximum copy speed 33 MB/s, per port.
- Compatible with all CompactFlash memory cards.
- Format, Erase, Media Check en Capacity Check functions.
- Easy operation through a LCD display and control buttons.
- 100% reliable copies due to the integrated control functions.
- Also available as 15 or 23 CF port models.
- Also available as MicroSD, Secure Digital or USB duplicator.

Specifications - compact flash duplicator system stand alone cf copy tower direct duplication
Included - compact flash duplicator system stand alone cf copy tower direct duplication Included - CopyBox 7 CF
- Power Cable
- User Manual
Writing Speeds - compact flash duplicator system stand alone cf copy tower direct duplication Writing Speeds Maximum 33 MB/s per port (depending on the media used)
Connection - compact flash duplicator system stand alone cf copy tower direct duplication Connection Stand-alone
Dimensions - compact flash duplicator system stand alone cf copy tower direct duplication Dimensions (LxWxH) 43,5 x 19,0 x 26,9 cm
Weight - compact flash duplicator system stand alone cf copy tower direct duplication Weight 6,1 kg
Power Supply - compact flash duplicator system stand alone cf copy tower direct duplication Power Supply 100-120 VAC or 220-240 VAC, 50/60Hz, 250 Watt, Switchable
Operating Conditions - compact flash duplicator system stand alone cf copy tower direct duplication Operating Conditions - In use : 5°C to 35°C
(RH: 7% to 80% non condensing)
- Not in use : -20°C to 60°C
(RH: 7% tot 90% non condensing)
Data Ports - compact flash duplicator system stand alone cf copy tower direct duplication Data Ports 1x Read, 7x Write
Production Capacity - compact flash duplicator system stand alone cf copy tower direct duplication Production Capacity Maximum 118 GB per port, per hour
Supported Formats - compact flash duplicator system stand alone cf copy tower direct duplication Supported Formats FAT16/32/NTFS/Linux (Ext2,Ext3)
Supported Media - compact flash duplicator system stand alone cf copy tower direct duplication Supported Media  - CompactFlash memory cards
Warranty - compact flash duplicator system stand alone cf copy tower direct duplication Warranty Standard 1 year carry-in warranty
